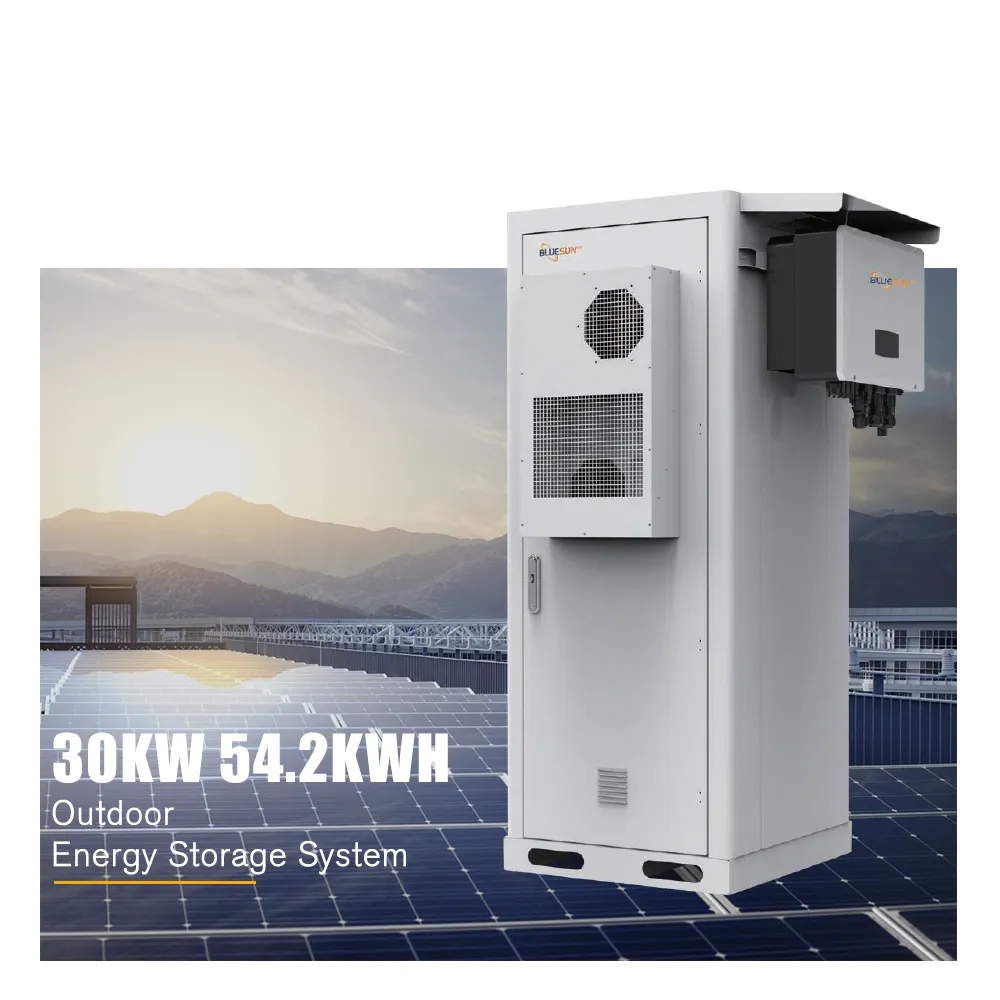

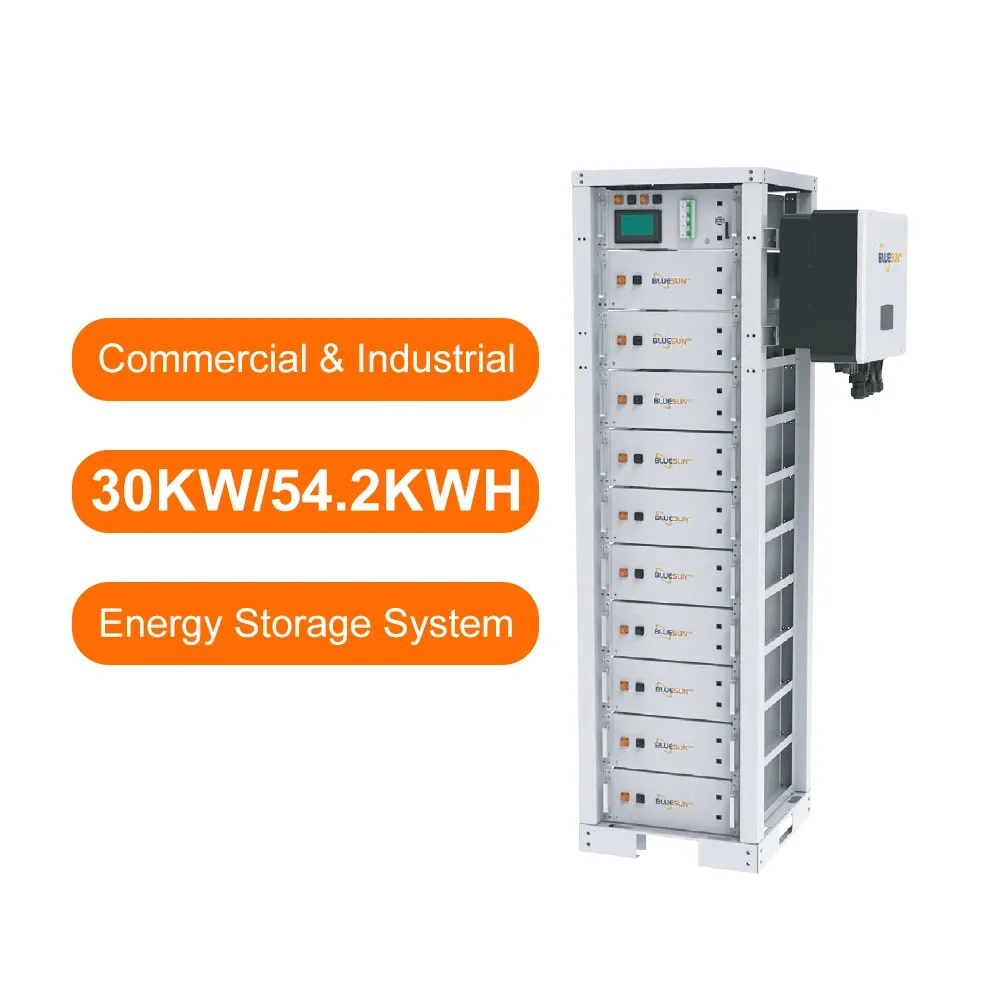

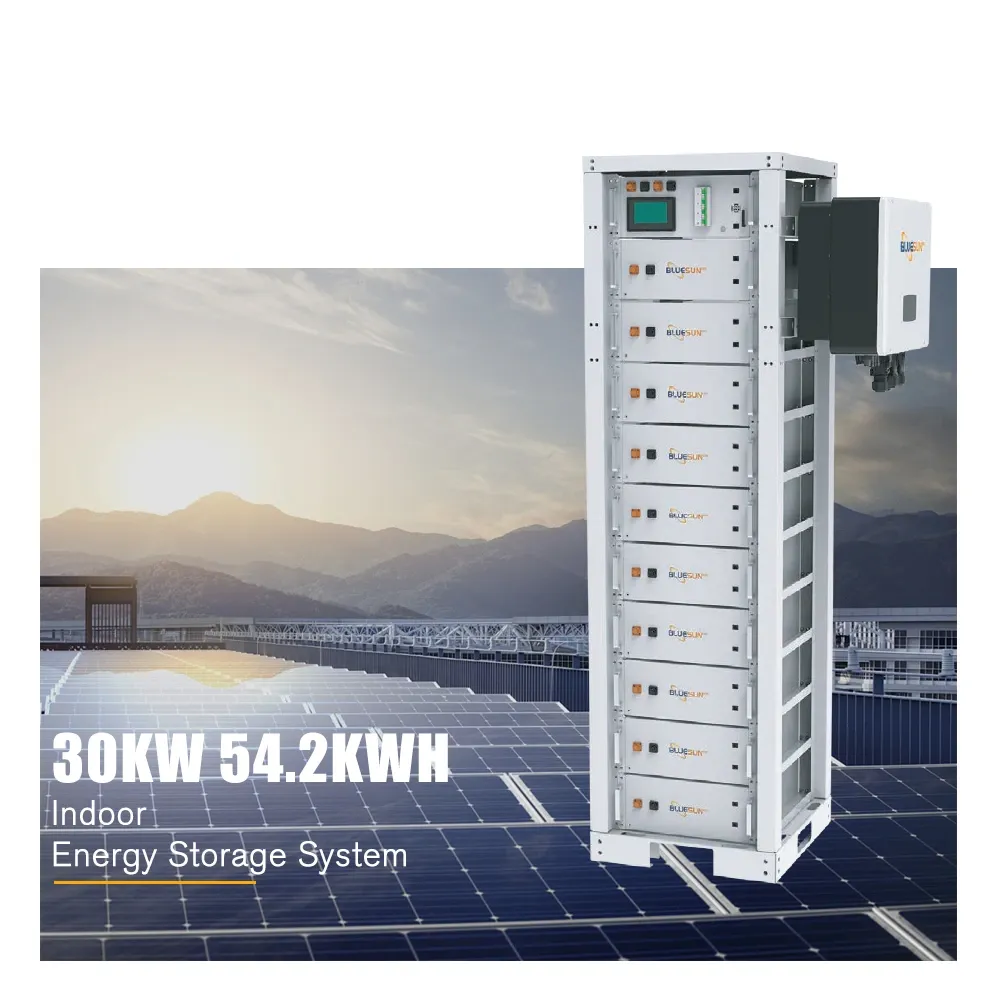

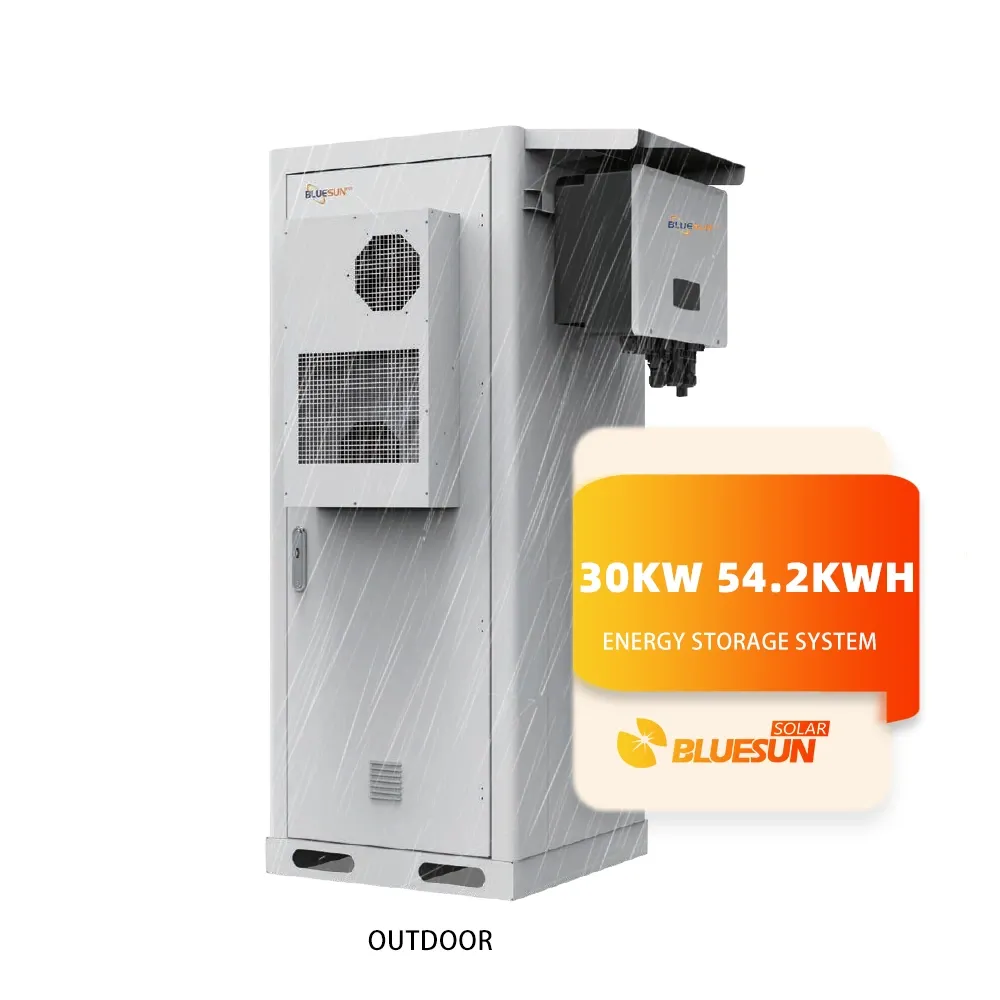

The Commercial & Industrial 30kW 54.2kWh Battery Energy Storage System is a high-performance energy solution designed for demanding commercial and industrial applications.
| Model: | BSE30KH3-54KWH |
| Rated Output Power: | 30KW |

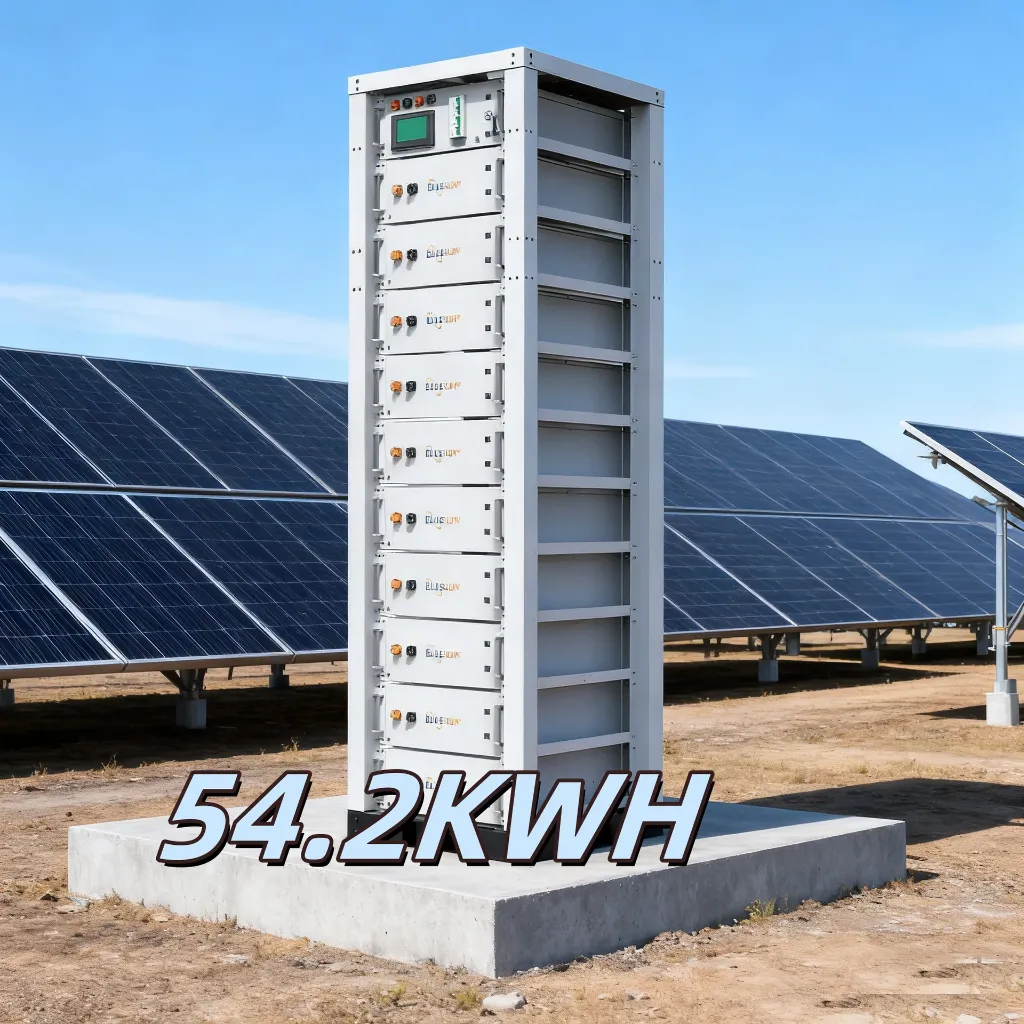

| System Capacity: | 54.2KWH |
| Battery Type: | LiFePO4 |

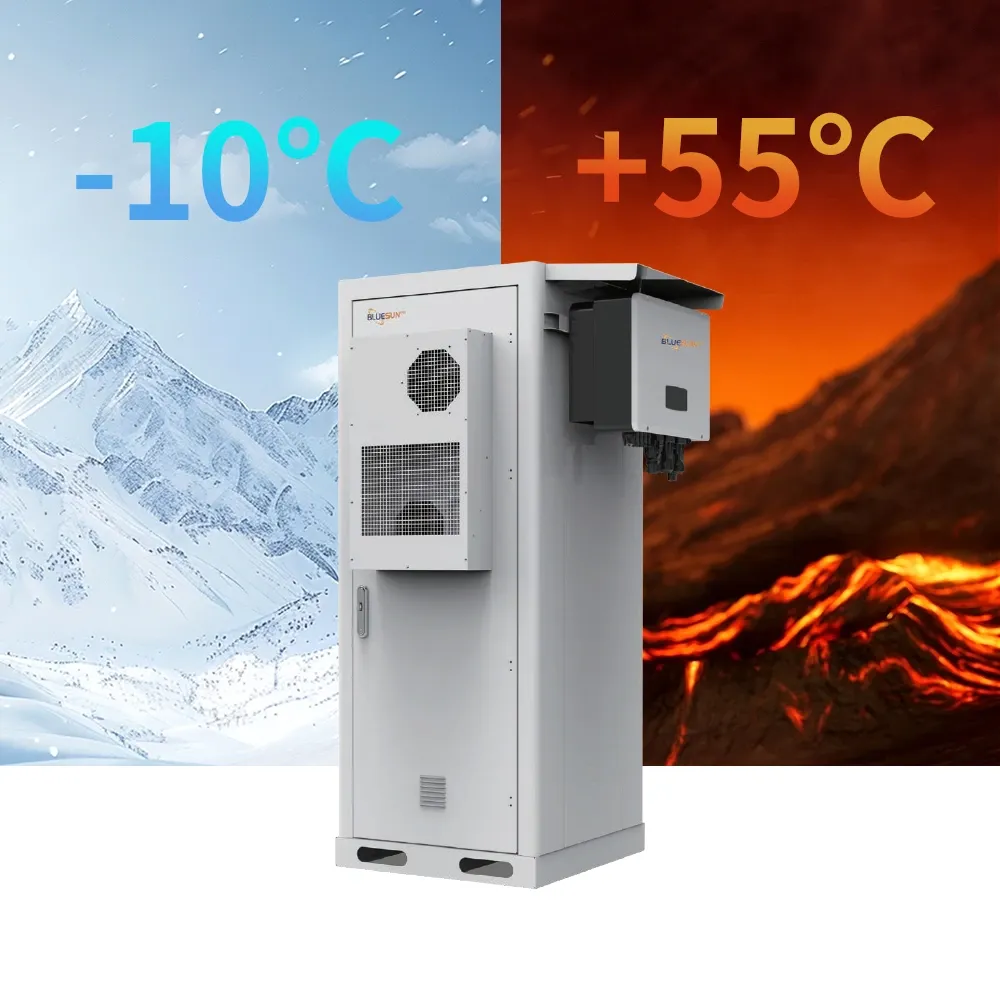

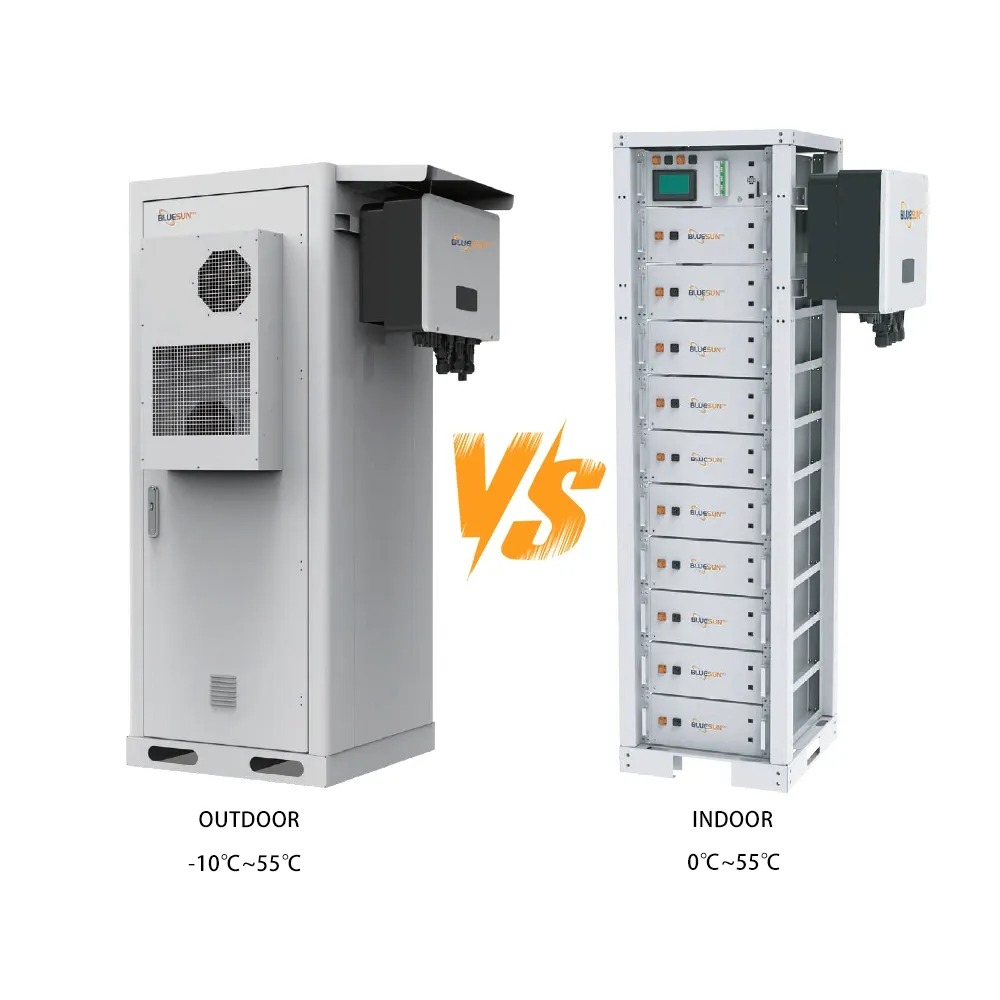

| Class of Protection: | IP32/lP56(outdoor) |
| Quality Guarantee: | 5 Years |
System Configuration
| Product name | Specification model | Unit | Quantity |
| Photovoltaic module | BSM565M10-72HPH | block | 64 |
| Dc combiner box | 4 input and 4 output | piece | 1 |
| Hybrid inverter | BSE30KH3 | piece | 1 |

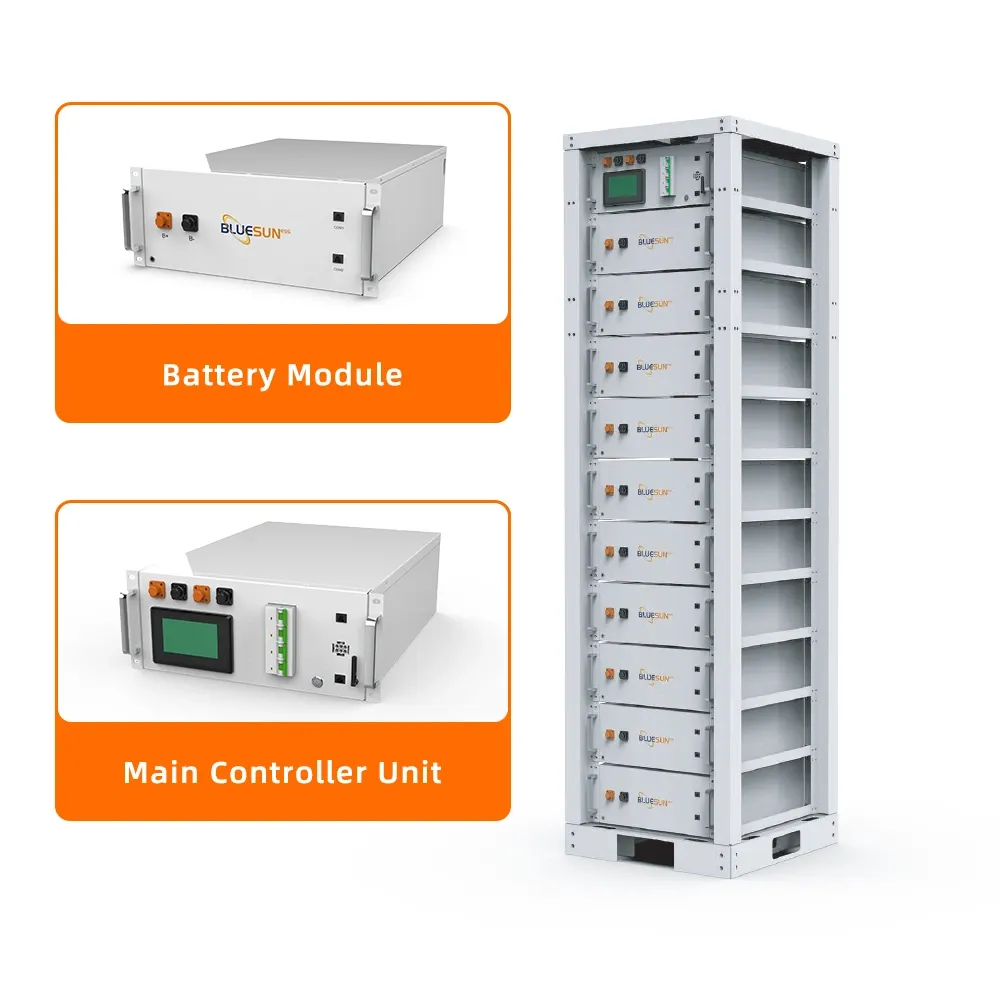

| Lithium battery | 51.2V 106Ah(including BMU/ Collecting harness/power cable) | pack | 10 |
| High voltage control box | piece | 1 |
| Battery Rack | set | 1 |
| Remote monitoring | WiFi | set | 1 |
| MC4 connector | The type of a one-to-one correspondence | pair | 16 |
| Photovoltaic cable | PV1-F 1*4mm² | meter | 400 |
| Support | Support for 64 photovoltaic modules | set | 1 |

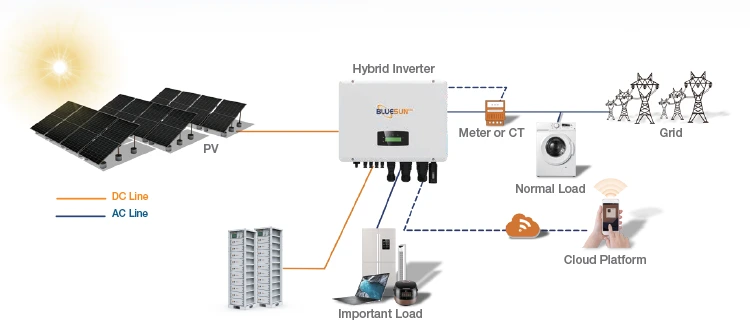

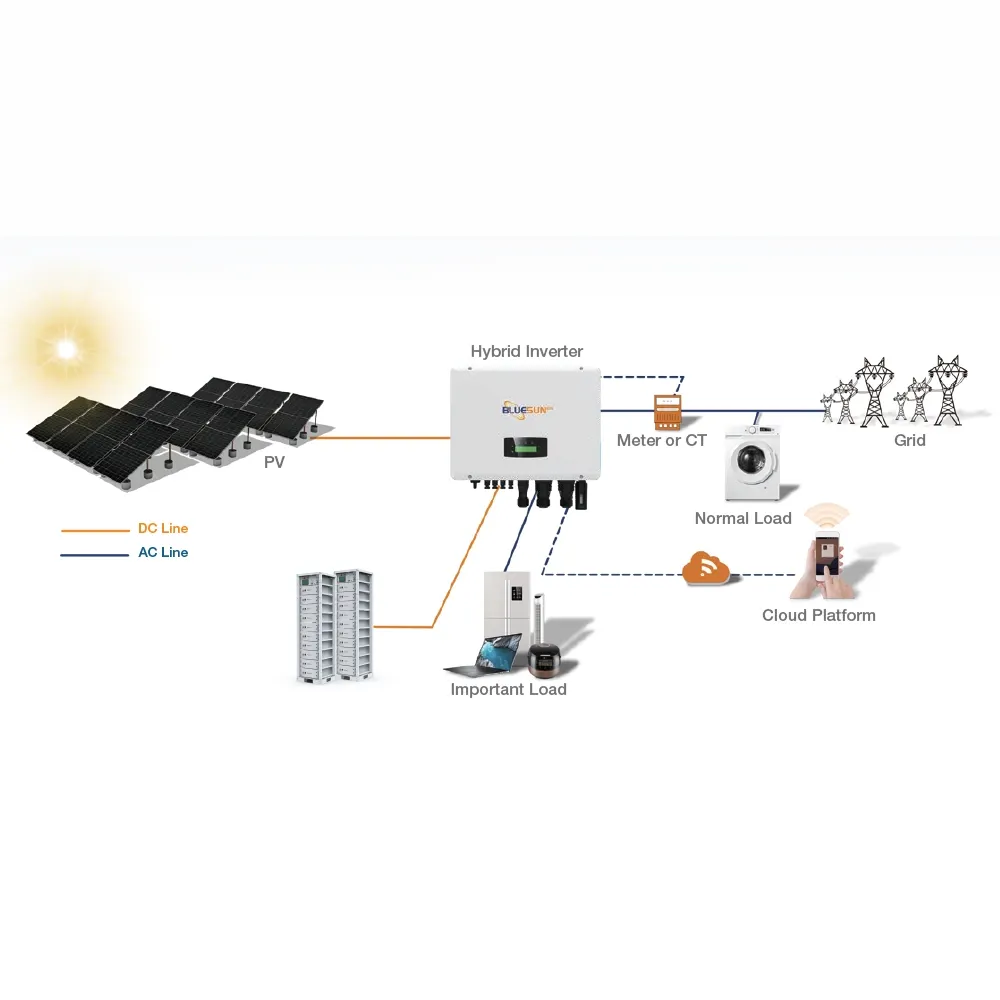

System Block Diagram
