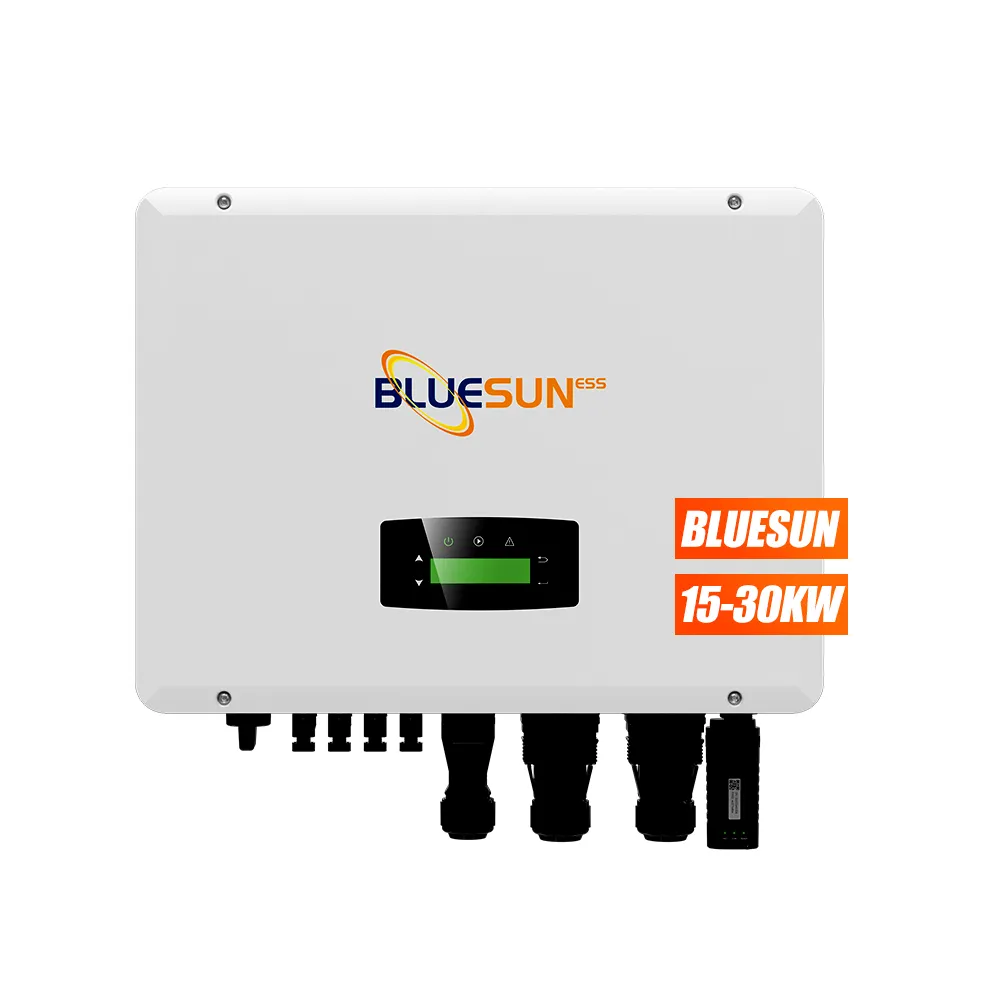

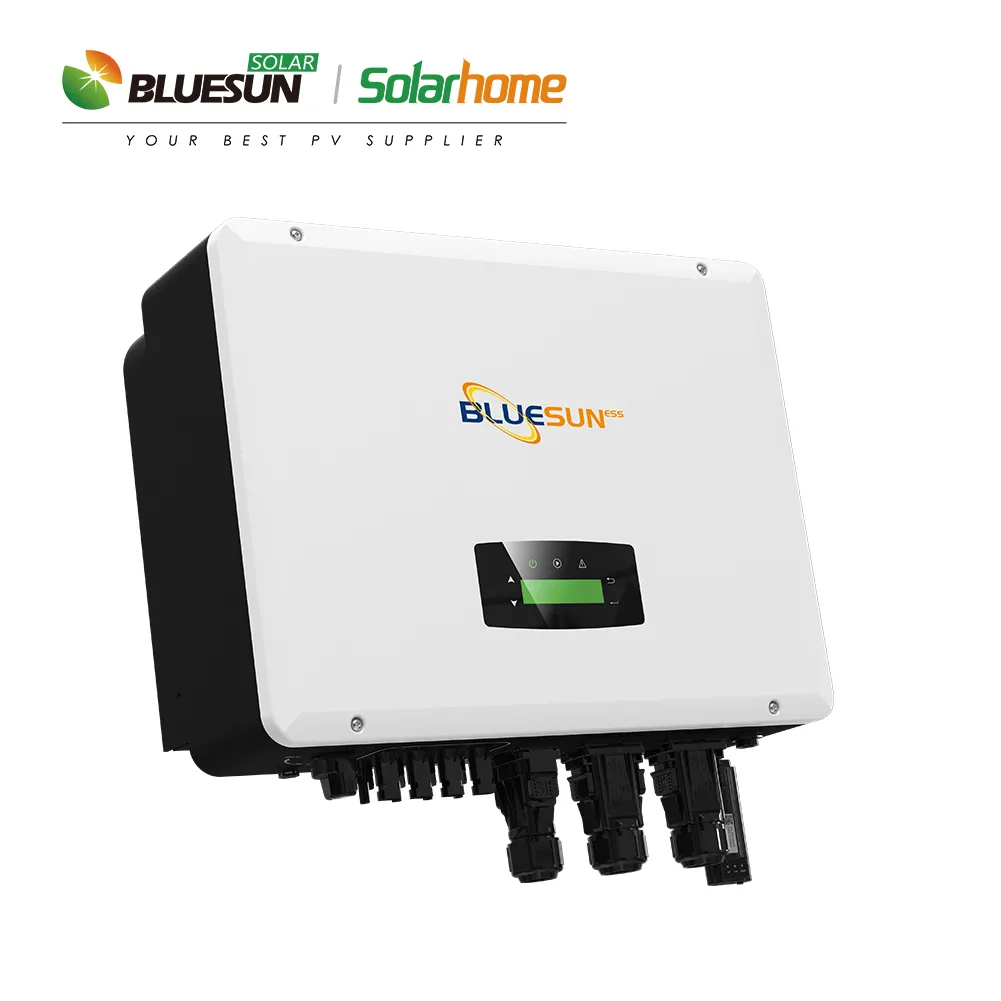

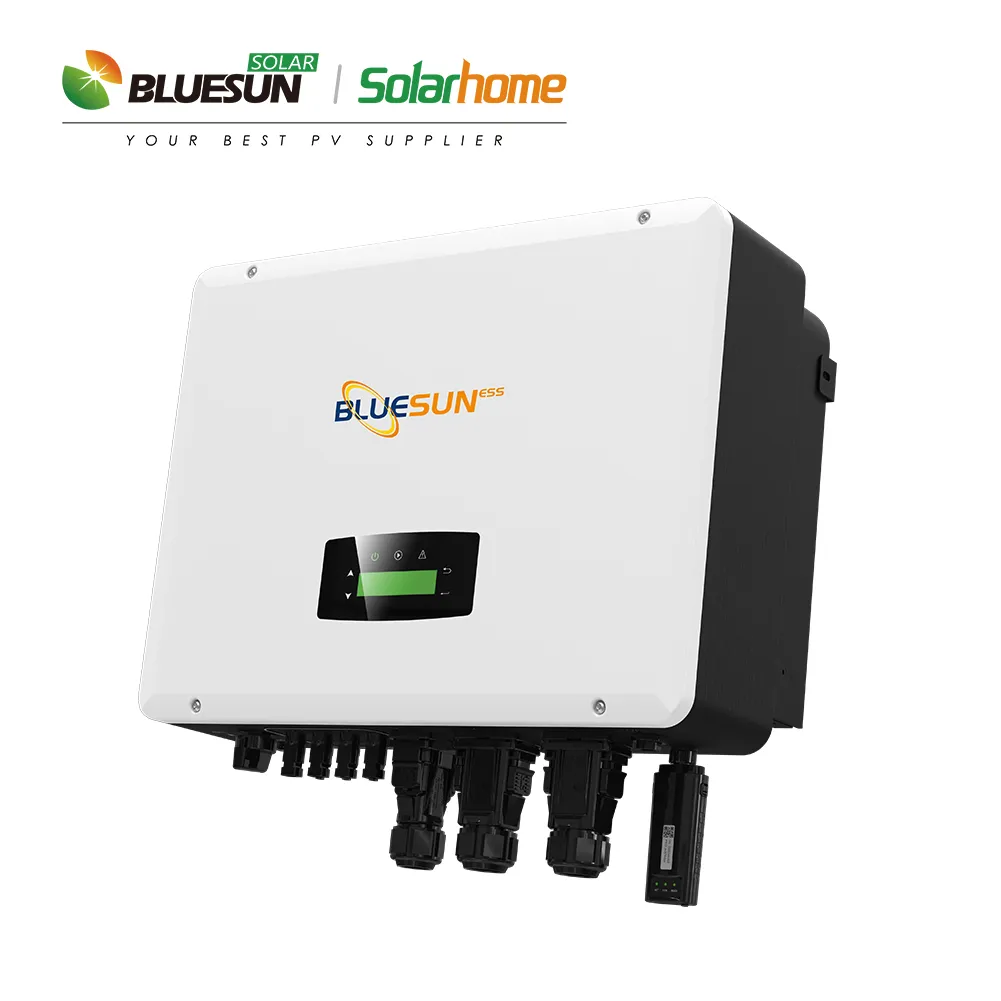

15/20/30kw Three Phase MPPT Hybrid Solar Inverter
The 15/20/30kW Three Phase MPPT Hybrid Solar Inverter is designed to deliver exceptional performance and reliability, making it an ideal solution for modern solar energy systems.
| Model: | BSE15/20/30KH3 |
| Type: | Three Phase Hybrid Storage Inverter |
| Max Power: | 15/20/30KW |
| Voltage Range: | 150-800V |
| Warranty: | 5 Years (7/10 Years Option) |
| Certificate: | CE,TUV |
Product Introduction
The 15/20/30kW Three Phase MPPT Hybrid Solar Inverter is designed to deliver exceptional performance and reliability, making it an ideal solution for modern solar energy systems. It features Time-of-Use (TOU) optimization to maximize energy efficiency and cost savings, while its support for unbalanced loads ensures seamless operation across diverse power demands. Equipped with optional AFCI and Rapid Shutdown capabilities, it enhances safety to meet the most stringent requirements.
The inverter comes with a built-in anti-feed-in function, enabling compliance with grid regulations, and offers smart monitoring with remote firmware upgrade capabilities for effortless system management. Additionally, it supports generator integration, ensuring flexibility and uninterrupted power supply for various scenarios. Designed for both reliability and innovation, this hybrid solar inverter is the perfect choice for residential, commercial, and industrial applications.
Key Features

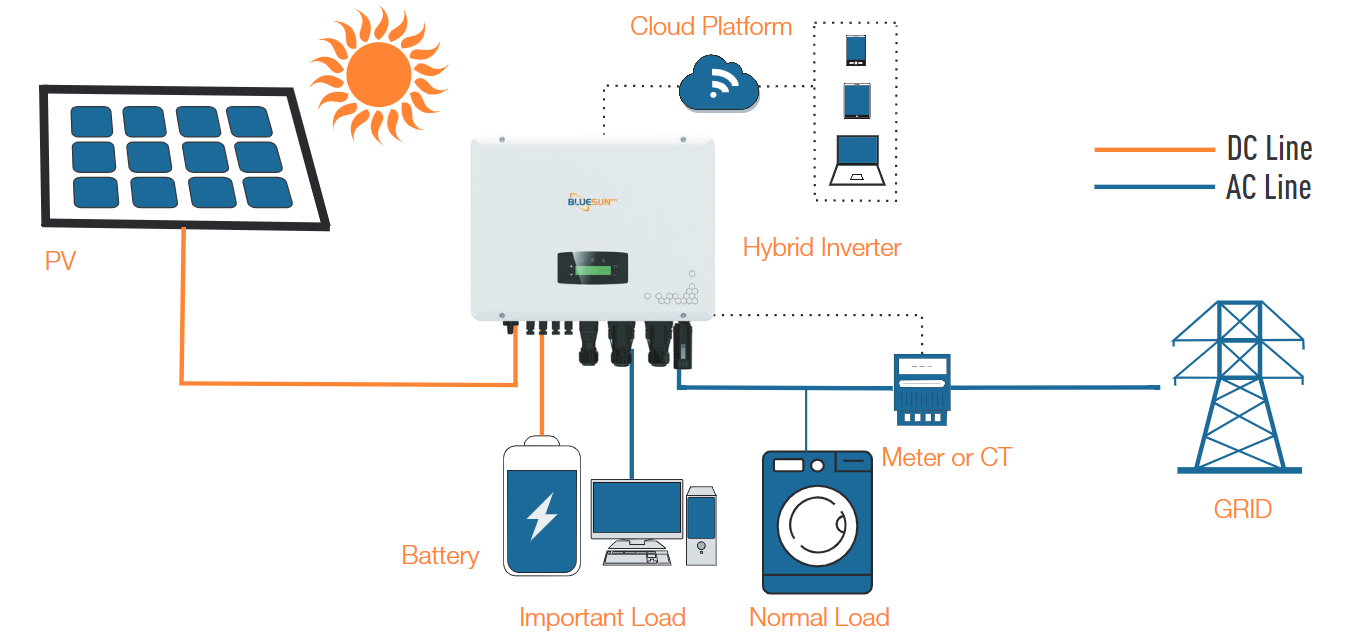

System Diagram
Basic Parameters
| Model | BSE15KH3 | BSE20KH3 | BSE30KH3 | | PV Input | | Max. DC Input Power (kW) | 22.5 | 30 | 45 | | Max. PV Voltage (V) | 1000 | | Rated DC Input Voltage (V) | 620 | | DC Input Voltage Range (V) | 150-1000 | | MPPT Voltage Range (V) | 150-850 | | Full MPPT Range(V) | 500-850 | | Start-up Voltage (V) | 160 | | Max. DC Input Current (A) | 20+32 | 32×2 | 40×2 | | Max. Short Current(A) | 30+48 | 48×2 | 60×2 | | No. of MPPT Tracker / Strings | 2/3 | 2/4 | 2/4 | | Battery Port | | Battery Nominal Voltage (V) | 500 | 500 | 550 | | Battery Voltage Range (V) | 150-800 | | Max. Charge/Discharge Current (A) | 50 | 50 | 60 | | Max. Charge/Discharge Power (kW) | 15 | 20 | 30 | | Charging Curve | 3 Stages | | Compatible Battery Type | Li-ion / Lead-acid | | AC Grid Output | | Nominal AC Output Power (W) | 15000 | 20000 | 30000 | | Max. AC Input Power(VA) | 22500 | 30000 | 45000 | | Max. AC Output Current (A) | 27 | 32 | 48 | | Nominal AC Voltage (V) | 230/400 | | Nominal AC Frenquency (Hz) | 50 / 60 | | Power Factor | 1（-0.8-0.8）adjustable | | Current THD (%) | <3% | | AC Load Output (Back-up) | | Nominal Output Power (VA) | 15000 | 20000 | 30000 | | Nominal Output Voltage (V) | 230 / 400 | | Nominal Output Frequency (Hz) | 50 / 60 | | Nominal Output Current (A) | 21.8 | 29 | 43.5 | | Peak Output Power | 16500VA, 60s | 22000VA, 60s | 33000VA, 60s | | THDV (with linear load) | <3% | | Switching Time (ms) | <10 | | Efficiency | | Europe Efficiency | 97.5% | 97.8% | 98.1% | | Max. Efficiency | 98.3% | 98.3% | 98.5% | | Battery Charge/Discharge Efficiency | 98.0% | | Protection | | Reverse Polarity Protection | Yes | | Over Current / Voltage Protection | Yes | | Anti-islanding Protection | Yes | | AC Short-ciruit Protection | Yes | | Leakage Current Detection | Yes | | Ground Fault Monitoring | Yes | | Grid Monitoring | Yes | | Enclosure Protect Level | IP65 | | General Data | | Dimensions (WxHxD,mm) | 558*535*260 mm | | Weight (kg) | 29kg | 29kg | 36kg | | Topology | Transformer-less | | Cooling Concept | Intelligent Fan | | Relatively Humidity | 0-100% | | Operating Temperature Range (°C) | -25 to 60 °C | | Operating Altitude (m) | < 4000 | | Noise Emission (dB) | < 40 | | Standby Consumption (W) | < 5 | | Display & Communication Interfaces | LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G |
|
